Shipbuilding Gantry Crane

Product Introduction

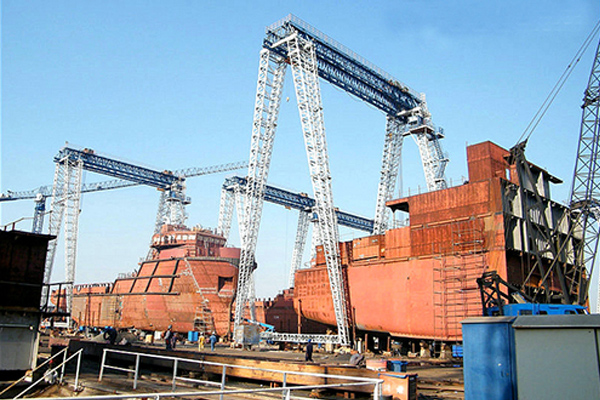

With the continuous development of the shipbuilding industry, the demand for shipyard gantry cranes is also growing rapidly. Compared with traditional portal cranes, this large shipyard gantry crane has obvious advantages in hull installation and transportation. It is usually used on docks or cargo ports for the manufacture of ships. Shipboard gantry cranes are mainly used for large hull loose transport, end-to-end joints and slewing operations. Not only does it have conventional lifting and horizontal handling functions, it also enables the hull to be turned over and the debris adjusted to the ship's necessary welding position.

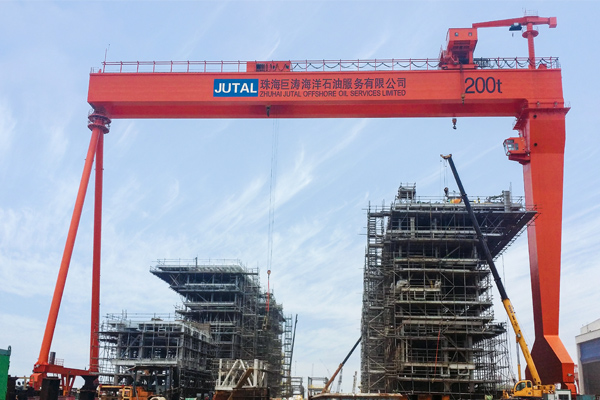

Shipbuilding gantry cranes usually have two structures: single girder gantry cranes and double girder gantry cranes.

When it comes to large spans and large tonnage lifting weights, we recommend double girder gantry cranes;

When the lifting capacity you need is not very large and the span is relatively small, we recommend using a more economical single-girder gantry crane.

Features

Features

The shipbuilding gantry crane is mainly composed of steel gantry, upper trolley, lower trolley, trolley traveling mechanism, maintenance, lubrication, elevator, and electrical equipment.

And it is equipped with rail clamping device (or wheel actuator), anchoring device, lifting weight limiter system, wind speed and direction system, limit switches of various institutions, and other safety protection devices.

For super-span gantry cranes, it can be equipped with a deviation correction system.

Large lifting capacity and large span.

Versatile and efficient.

A variety of accessories can be customized, such as: colors, electrical components, reducer motors, brakes, etc.

The girder adopts the optimized design of variable section, in order to make reasonable use of materials and save costs.

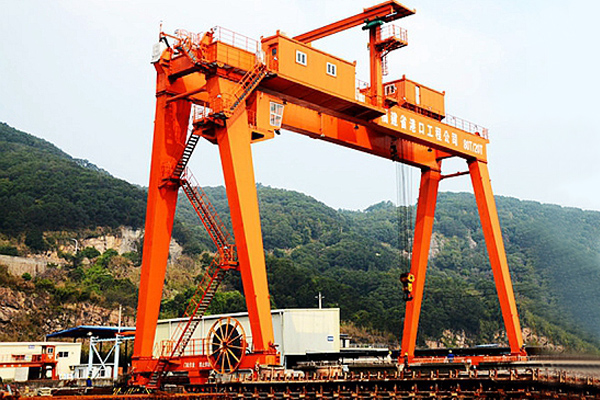

There are two types of outriggers for shipyard gantry cranes: single-column and double-column.

The upper and lower trolleys can be cross-operated.

Fully reliable rail clamps, ground anchors and other windproof devices can prevent storm attacks and enhance stability.

All lifting mechanisms and walking mechanisms adopt frequency conversion speed regulation.

Factory Price

We can offer a factory direct sale. If interested, you can contact our customer service? personnel or send emails at info@weihuaheavycrane.com
