Forging Crane

Product Introduction

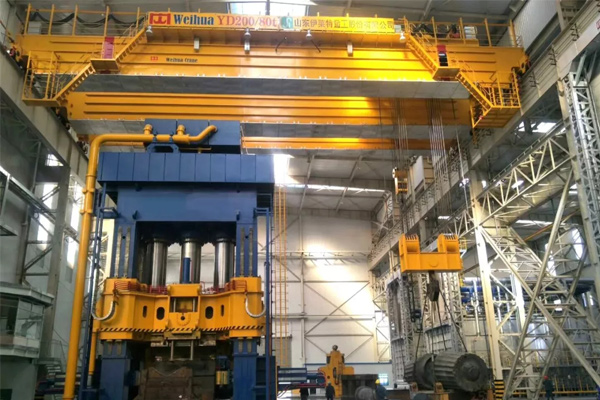

Forging crane is a kind of bridge crane with special spreader, which is the main lifting equipment of forging workshop. It is used for lifting, buffering and overturning of forgings (large solid hot-melt metal), and forging and forming of moulded parts.

This bridge crane is equipped with a special lathe, and its structure can be a three-girder four-track structure. The 250-ton forged overhead cranes we produce meet the requirements of JB/T7688.1-2008, and adopt first-class processing equipment and advanced manufacturing technology to ensure the high performance and high quality of forged cranes.

As a leading crane manufacturer in China, we have 34 years of rich experience in the crane industry. No matter what type of crane you need, we can provide you with the best solution.

When the forging crane is working, the main and auxiliary hooks cooperate to lift the forgings, and the forgings are rotated by the special spreader. Adjust the forging to a suitable angle, put it on the cutting board of the hydraulic press, and the hydraulic press starts to work until the forging is forged into a qualified product. Since the crane will be subjected to relatively large shock loads during the forging process, it is equipped with a buffer device and a brake release device.

Features

1. YD250/80t-33m-A6 (main hook cap: 250t, auxiliary hook cap. 80t, span: 33m, working load: A6)

2. The forging crane has mechanical shock-proof function and mechanical anti-overload function, which is safe and reliable;

3. The crane is subjected to 1.4 times the static load and 1.2 times the dynamic load test;

4. The crane is designed with 3 beams and 4 rails, and the main and auxiliary beams adopt a wide flange off-rail box structure;

5. The crane is equipped with a special lathe to lift and turn the workpiece;

6. The key points of each part are calculated by finite element analysis technology;

7. The flexible design of the crane, the use of bolts and hinged joints between the modules, is convenient for installation and maintenance, improves the utilization rate of the workshop, reduces energy consumption, and has strong adaptability;

8. Use computer simulation analysis technology to analyze and control the research and development results.
